Main Dimensions
Overall dimensions (mm)
6950×2275×23807950×2275×2380
Overall dimensions (mm)
6950×2275×23807950×2275×2380
Cabin width (mm)
2060
Cabin width (mm)
2060
Wheelbase (mm)
38004500
Wheelbase (mm)
38004500
Cargo length (mm)
50006000
Cargo length (mm)
50006000
GVW (kg)
8500
GVW (kg)
8500
Payload (kg)
6000
Payload (kg)
6000
Power
Engine brand
Cummins
Engine brand
Cummins
Model
ISF3.8S5154
Model
ISF3.8S5154
Displacement (L)
3.76
Displacement (L)
3.76
Max power (Hp/rpm)
154
Max power (Hp/rpm)
154
Max torque (N·m/rpm)
491
Max torque (N·m/rpm)
491
Exhaust emission standard
Euro V
Exhaust emission standard
Euro V
Transmission
Model
ZF6S500
Model
ZF6S500
Technology type
6MT
Technology type
6MT
Clutch
Φ350
Clutch
Φ350
Max speed (km/h)
120
Max speed (km/h)
120
Chassis
Frame
192×60×6
Frame
192×60×6
Axle
Front2.4T
AxleFront
2.4T
Rear1080C/6.5T/4.33(4.875)
Rear
1080C/6.5T/4.33(4.875)
Suspension
FrontNon-independent suspension with spring
SuspensionFront
Non-independent suspension with spring
RearNon-independent suspension with spring
Rear
Non-independent suspension with spring
Steering system
Round ball power steering
Steering system
Round ball power steering
Fuel tank
200
Fuel tank
200
Tire
215/75R17.5.2+4/1
Tire
215/75R17.5.2+4/1
Brake system
Brake BrandKNORR-BREMSE
Brake systemBrake Brand
KNORR-BREMSE
Brake typeAir
Brake type
Air
FrontDisc
Front
Disc
RearDrum
Rear
Drum
Exhaust brakeSTD
Exhaust brake
STD
ABS
ESP/ESC - ASR - ABS
ABS
ESP/ESC - ASR - ABS
Automatic adjustment of braking clearance
Automatic adjustment of braking clearance
Features
- Battery : 24V
- Radio
- MP3
- Central lock + electronic control window
- High Slope Start Assist System
- Multi-function steering wheel
- Automatic headlights
- Cruise control
- Back-up alarm
Cargo Truck
Cargo Truck
Download Full Specification Brochure

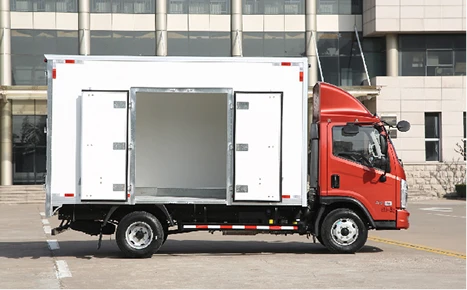

Super large space and exceptional performance
In the wide cargo body, two rows of logistics pallets can be placed side by side, this securing higher space use and providing users with accurate and scientific logistics solutions

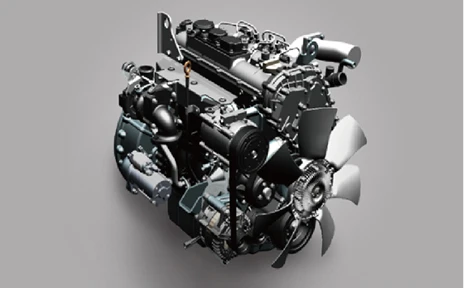

Robust power and classic high efficiency
DEV2.5/3.0 engine designed by German FEV adopts 16-valve distribution system and timing gear + belt transmission system, with the features of low noise, stable operation, high transmission accuracy, compact structure, reliability and durability.

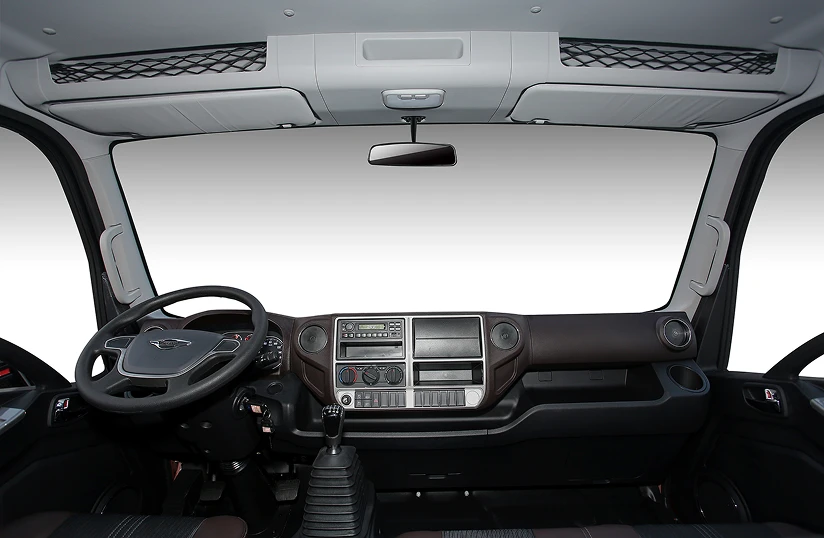

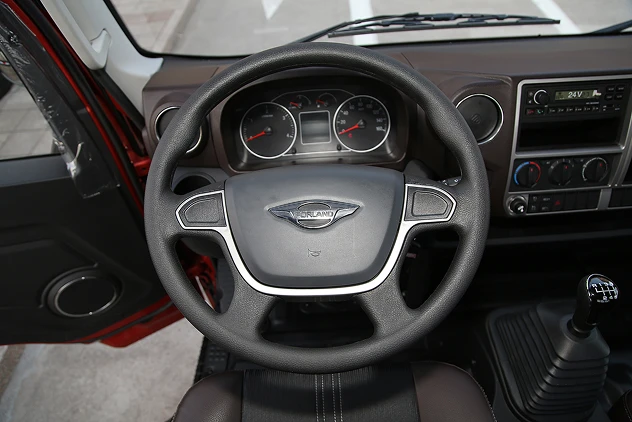

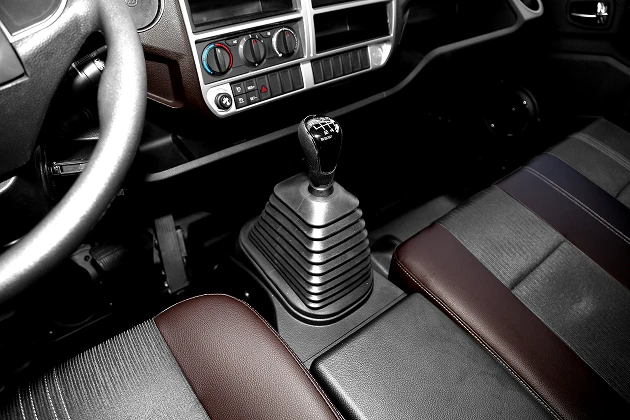

Comfortable driving
With car trimmings, the standard configurations include central locking, electric window, remote control key, six-way adjustment hydraulic shock absorption seat, front row can lie down to rest, easy to operate, more comfortable to drive.
